Description

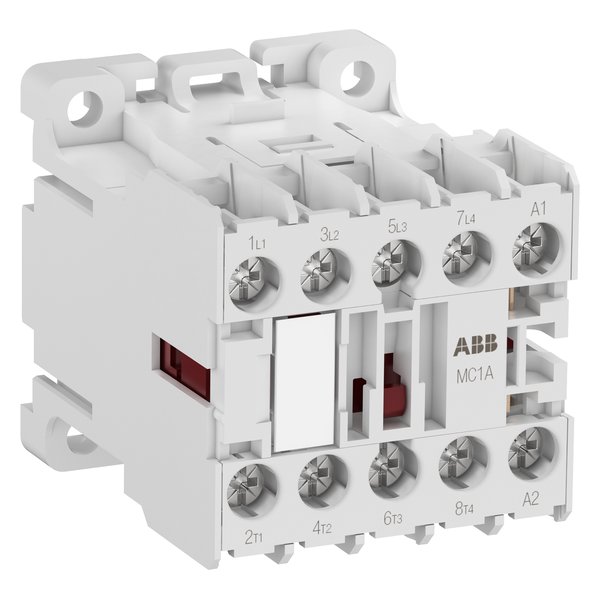

Mini Contactor MC1 220…230 V AC – 4 NO – 0 NC – Screw Terminals. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Number of Main Contacts NO | 4 |
|---|---|
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 4P |
| Rated Operational Voltage | Main Circuit 690 V AC; Main Circuit 440 V DC |
| Rated Frequency (f) | Control Circuit 50 Hz; 60 Hz; Main Circuit 50 Hz; 60 Hz; DC |
| Conventional Free-air Thermal Current (I_th) | Main Circuit 20 A |
| Rated Operational Current AC-1 (I_e) | 690 V 55 °C → 20 A; 690 V 70 °C → 16 A; 230 V 55 °C → 20 A; 230 V 70 °C → 16 A; 400 V 55 °C → 20 A; 400 V 70 °C → 16 A; 500 V 55 °C → 20 A; 500 V 70 °C → 16 A |
| Rated Operational Current AC-3 (I_e) | 230 V 55 °C → 9 A; 400 V 55 °C → 9 A; 500 V 55 °C → 8 A; 690 V NO 55 °C → 5 A |
| Rated Operational Power AC-3 (P_e) | 230 V 3-ph → 2.2 kW; 400 V 3-ph → 4 kW; 500 V 3-ph → 4 kW; 690 V 3-ph NO → 4 kW |
| Rated Breaking Capacity AC-3 | 8 × I_e / AC-3 (per IEC 60947-4-1) |
| Rated Making Capacity AC-3 | 10 × I_e / AC-3 (per IEC 60947-4-1) |
| Rated Short-time Withstand Current (I_cw) | 40 °C free air, cold state: 10 s 72 A |
| Rated Insulation Voltage (U_i) | 750 V |
| Rated Impulse Withstand Voltage (U_imp) | Main Circuit 6 kV |
| Max Electrical Switching Frequency | AC-1 300 cph; AC-15 360 cph; AC-3 1200 cph; DC-1 600 cph; DC-13 360 cph; DC-3 600 cph |
| Coil Operating Limits | IEC 60947-4-1 AC: 0.85…1.1 × U_c (θ ≤ 55 °C) |
| Rated Control Circuit Voltage (U_c) | 220…230 V AC |
| Coil Consumption | Avg holding 50 Hz 5.3 V·A; Avg pull-in 50 Hz 5.3 V·A |
| Power Loss | AC-1 per pole 0.7 W |
| Standards | IEC/EN 60947-1; IEC/EN 60947-4-1; UL 60947-1; UL 60947-4-1 |
| Mechanical Durability | 10 000 000 cycles |
| Mounting on DIN Rail | TH35-15 (35×15 mm); TH35-7.5 (35×7.5 mm) per IEC 60715 |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 56 mm |
| Product Net Height | 48 mm |
| Product Net Weight | 0.17 kg |
| Customs Tariff Number | 85365080 |
| Country of origin | Bulgaria |
| Manufacturer standard delivery time | 14 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
