Description

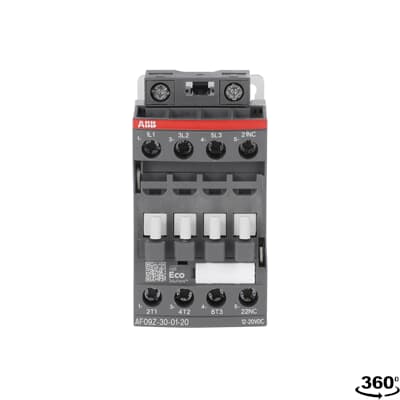

AF09Z-30-01-20 12-20VDC Contactor. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Main Contacts NO / NC | 3 / 0 |
|---|---|
| Auxiliary Contacts NO / NC | 0 / 1 (built-in) |
| Number of Poles | 3P |
| Rated Operational Voltage (main) | 690 V |
| Rated Frequency | 50/60 Hz |
| AC-3 Rated Operational Current (400 V, 60 °C) | 9 A |
| Motor Power (AC-3) | 4 kW / 400 V; 5 hp / 480 V UL |
| AC-1 Rated Operational Current (690 V) | 25 A |
| Conventional Free-air Thermal Current Ith (main) | 35 A (IEC 60947-4-1, open, 40 °C) |
| Conventional Free-air Thermal Current Ith (aux) | 16 A (IEC 60947-5-1, 40 °C) |
| AC-15 Current (24/127 V) | 6 A |
| DC-1 Current (110 V, 3 poles in series, 40 °C) | 25 A |
| Control Voltage Range | 12-20 V DC |
| Surge Protection | Built-in |
| Standards | IEC/EN 60947-1; IEC/EN 60947-4-1; UL 60335-2-40; UL 60947-4-1; CSA C22.2 No. 60335-2-40; CSA C22.2 No. 60947-4-1 |
| Terminal Type | Screw |
| Dimensions (W x D x H) | 45 x 77 x 86 mm |
| Weight | 0.31 kg |
| EAN | 3471523113305 |
| Customs Tariff Number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
