Description

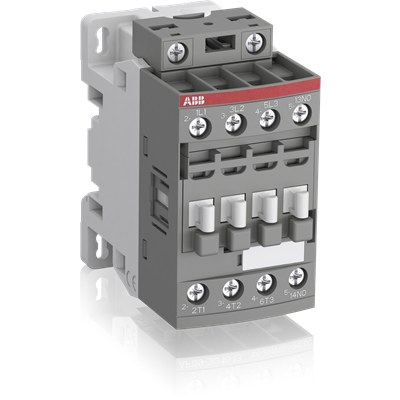

The AF09Z-30-01-22 is a 3 pole – 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 4 kW / 400 V AC (AC-3) or 5 hp / 480 V UL and switching power circuits up to 25 A (AC-1) or 25 A UL general use. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | 9 A at 380/400 V (60 °C); 9.5 A at 500 V; 7 A at 690 V |
|---|---|
| Motor power at 400 V | 4 kW (IEC AC-3); 5 hp at 480 V (UL) |
| AC-1 rated operational current | 25 A at 690 V (40 °C and 60 °C); 22 A at 70 °C |
| Rated operational voltage | Main Circuit 690 V; Auxiliary Circuit 690 V |
| Rated frequency | 50 / 60 Hz |
| Poles | 3P |
| Contact configuration | 3 NO main, 0 NC main; 0 NO auxiliary, 1 NC auxiliary (built-in) |
| Control supply voltage range | 48-130 V 50/60 Hz and DC |
| Conventional free-air thermal current | 35 A (IEC 60947-4-1); 16 A (IEC 60947-5-1) |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40, UL 60947-4-1, CSA C22.2 No. 60335-2-40, CSA C22.2 No. 60947-4-1 |
| Product Net Width | 45 mm |
| Product Net Depth | 77 mm |
| Product Net Height | 86 mm |
| Product Net Weight | 0.31 kg |
| EAN | 3471523113329 |
| Customs Tariff Number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
