Description

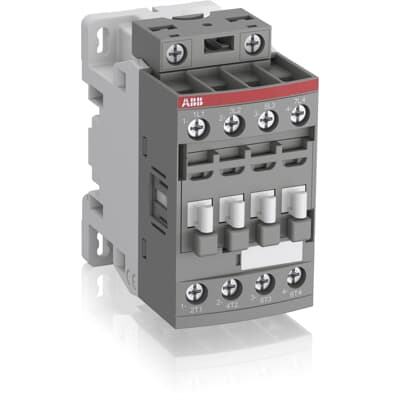

The AF09Z-40-00-22 is a 4 pole – 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 4 kW / 400 V AC (AC-3) and switching power circuits up to 25 A (AC-1) or 25 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Rated Operational Current AC-3 (I<sub>e</sub>) | (415 V) 60 °C 9 A; (440 V) 60 °C 9 A; (500 V) 60 °C 9.5 A; (690 V) 60 °C 7 A; (380 / 400 V) 60 °C 9 A; (220 / 230 / 240 V) 60 °C 9 A |
|---|---|
| Rated Operational Power AC-3 (P<sub>e</sub>) | (400 V) 4 kW; (415 V) 4 kW; (440 V) 4 kW; (500 V) 5.5 kW; (690 V) 5.5 kW; (380 / 400 V) 4 kW; (220 / 230 / 240 V) 2.2 kW |
| Rated Operational Current AC-1 (I<sub>e</sub>) | (690 V) 40 °C 25 A; (690 V) 60 °C 25 A; (690 V) 70 °C 22 A |
| Rated Operational Voltage | Main Circuit 690 V |
| Number of Poles | 4P |
| Number of Main Contacts NO | 4 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Rated Control Circuit Voltage (U<sub>c</sub>) | 50 Hz 48 … 130 V; 60 Hz 48 … 130 V; DC Operation 48 … 130 V |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20; acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CAN/CSA C22.2 No.60947-1, CAN/CSA C22.2 No.60947-4-1 |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 77 mm |
| Product Net Height | 86 mm |
| Product Net Weight | 0.31 kg |
| Country of origin | France |
| Customs tariff number | 85365080 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
