Description

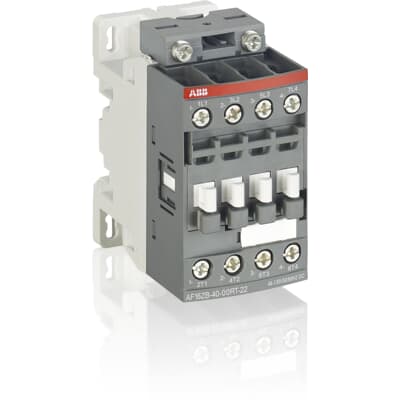

The AF09ZB-40-00RT-21 is a 4 pole – 690 V IEC or 600 UL contactor with Ring-Tongue Terminals, controlling motors up to 4 kW / 400 V AC (AC-3) and switching power circuits up to 25 A (AC-1) or 25 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Rated Operational Current AC-3 | (220 / 230 / 240 V) 60 °C 9 A; (380 / 400 V) 60 °C 9 A; (415 V) 60 °C 9 A; (440 V) 60 °C 9 A; (500 V) 60 °C 9.5 A; (690 V) 60 °C 7 A |
|---|---|
| Rated Operational Current AC-1 | (690 V) 40 °C 25 A; (690 V) 60 °C 25 A; (690 V) 70 °C 22 A |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A |
| Rated Operational Voltage | Main Circuit 690 V |
| Number of Poles | 4P |
| Number of Main Contacts NO | 4 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Rated Frequency | Control Circuit 50 / 60 Hz; Main Circuit 50 / 60 Hz |
| Control supply voltage range | 24-60 V 50/60 Hz and 20-60 V DC (stated in long description, no dedicated spec row extracted) |
| Motor power at 400 V | 4 kW AC-3 (stated in long description, no dedicated spec row extracted) |
| Standards | IEC/EN 60947-1; IEC/EN 60947-4-1; UL 60947-4-1; CSA C22.2 No. 60947-4-1; IEC 60077-1 (applicable parts); IEC 60077-2 (applicable parts); EN 50155 (applicable parts); TR CU 001/2011; IEC 61373 |
| Dimensions | width 45 mm; depth 77 mm; height 86 mm |
| Weight | 0.32 kg |
| EAN | 3471523129412 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
