Description

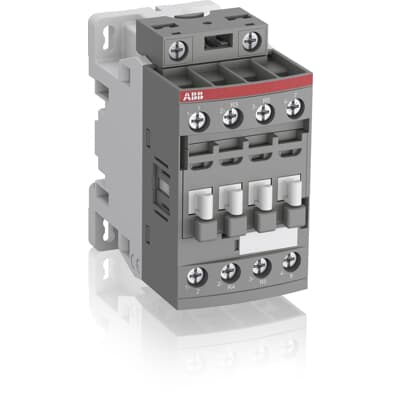

The AF09Z-22-00-20 is a 4 pole – 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 4 kW / 400 V AC (AC-3) and switching power circuits up to 25 A (AC-1) or 25 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (12-20 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | (220/230/240 V) 60 °C: 9 A; (380/400 V) 60 °C: 9 A; (415 V) 60 °C: 9 A; (440 V) 60 °C: 9 A; (500 V) 60 °C: 9.5 A; (690 V) 60 °C: 7 A |
|---|---|
| Motor power at 400 V (AC-3) | 4 kW |
| AC-1 rated operational current | (690 V) 40 °C: 25 A; (690 V) 60 °C: 25 A; (690 V) 70 °C: 22 A |
| Rated voltage | Main circuit: 690 V (690 V IEC / 600 V UL) |
| Poles and contact configuration | 4P; 2 main contacts NO; 2 main contacts NC; 0 auxiliary contacts NO; 0 auxiliary contacts NC |
| Control supply voltage range | DC operation 12-20 V |
| Protection rating | (not shown in page content) |
| Product type | Contactor – 12-20 V DC |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CAN/CSA C22.2 No.60947-1, CAN/CSA C22.2 No.60947-4-1 |
| Dimensions (W x D x H) | Width: 45 mm; depth: 77 mm; height: 86 mm |
| Weight | 0.31 kg |
| EAN | 3471523116603 |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
