Description

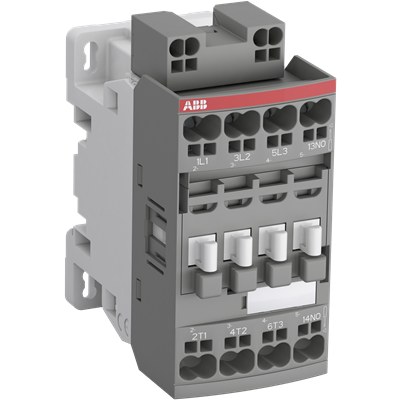

The AF09Z-22-00K-21 is a 4 pole – 690 V IEC or 600 UL contactor with Push-in Spring terminals. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current (Ie) | (415 V) 60 °C 9 A; (440 V) 60 °C 9 A; (500 V) 60 °C 9.5 A; (690 V) 60 °C 7 A; (380 / 400 V) 60 °C 9 A; (220 / 230 / 240 V) 60 °C 9 A |
|---|---|
| Motor power at 400 V (AC-3) | (400 V) 4 kW |
| AC-1 rated operational current | (690 V) 40 °C 25 A; (690 V) 60 °C 25 A; (690 V) 70 °C 22 A |
| Rated operational voltage | Main Circuit 690 V |
| Poles and contact configuration | 4P; Number of Main Contacts NO: 2; Number of Main Contacts NC: 2 |
| Control supply voltage range | 50 Hz 24 … 60 V; 60 Hz 24 … 60 V; DC Operation 20 … 60 V |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1 |
| Product dimensions | 45 mm wide; 77 mm deep; 92.3 mm high |
| Product net weight | 0.285 kg |
| EAN | 3471523018488 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 92 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
