Description

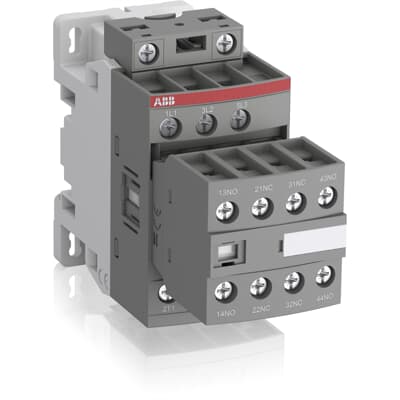

The AF09-30-22-12 is a 3 pole – 690 V IEC or 600 UL contactor with pre-mounted auxiliary contacts and screw terminals. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current (Ie) | 9 A (380/400 V, 60 °C); 9.5 A (500 V); 7 A (690 V) |
|---|---|
| Motor power at 400 V (AC-3) | 4 kW |
| AC-1 rated operational current | 25 A (690 V, 40 °C / 60 °C); 22 A (70 °C) |
| Rated operational voltage | Main circuit 690 V; auxiliary circuit 690 V |
| Poles and contact configuration | 3P; 3 NO main / 0 NC main; 2 NO auxiliary / 2 NC auxiliary |
| Control supply voltage range | 48-130 V 50/60 Hz and DC |
| Standards | IEC/EN 60947-1, -4-1; UL 60335-2-40 LZGH2 A2L; UL 60947-4-1; CSA C22.2 No. 60335-2-40 / 60947-4-1 |
| Product dimensions | 45 x 110.5 x 86 mm (W x D x H) |
| Product net weight | 0.32 kg |
| EAN | 3471523110229 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 111 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
