Description

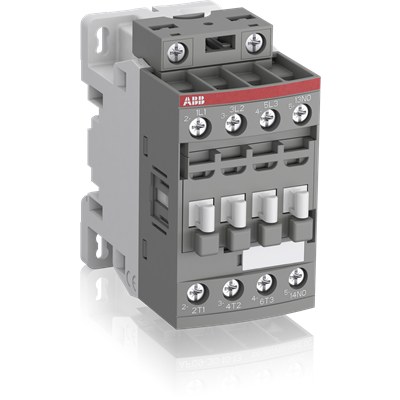

AF09-30-01-13 100-250V50/60HZ-DC Contactor. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Motor power at 400 V | 4 kW |
|---|---|
| AC-1 current | 25 A |
| Rated voltage | 690 V IEC or 600 UL |
| Poles and contact configuration | 3 pole; 1 built-in auxiliary contact; screw terminals |
| Control supply voltage | 100-250 V 50/60 Hz and DC |
| Product type | Contactor |
| Standards | IEC; UL |
| Depth | 77 mm |
| Height | 86 mm |
| Width | 45 mm |
| Weight | 0.27 kg |
| EAN | 3471523110137 |
| Country of origin | France |
| Customs tariff number | 85365080 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
