Description

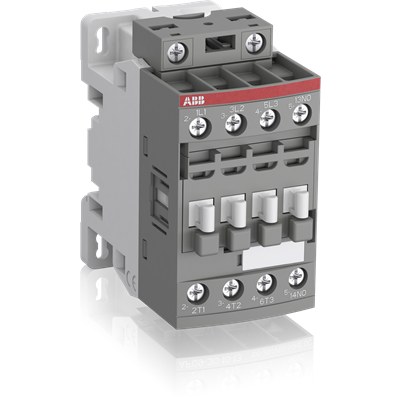

3-pole 690 V IEC / 600 V UL contactor with 1 built-in auxiliary contact and screw terminals; controls motors up to 4 kW at 400 V AC-3 or 5 hp at 480 V UL; switches power circuits up to 25 A AC-1 or 25 A UL general use; 100-250 V 50/60 Hz and DC control range; built-in surge protection; block design extendable with auxiliary contact blocks and accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Motor power at 400 V | 4 kW |
|---|---|
| AC-1 current | 25 A; also 25 A UL general use |
| Rated voltage | 690 V IEC; 600 V UL |
| Poles and contact configuration | 3-pole; 1 built-in auxiliary contact; screw terminals |
| Control supply voltage range | 100-250 V, 50/60 Hz and DC |
| Product type | Contactor |
| Dimensions | 45 mm width; 77 mm depth; 86 mm height |
| Weight | 0.27 kg |
| EAN | 3471523110038 |
| Customs tariff number | 85365080 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
