Description

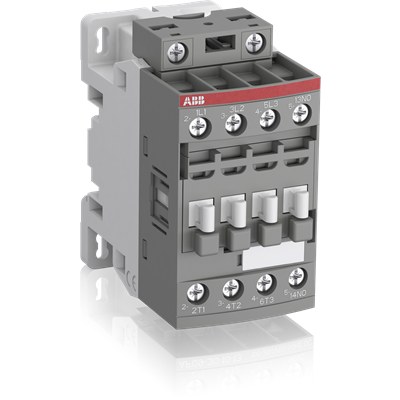

A three-pole contactor for IEC/UL networks, with screw connections, one internal auxiliary contact, 4-kilowatt 400 V AC-3 motor duty, 5-horsepower 480 V UL motor duty, 25 A general-use/AC-1 switching, broad 250-500 V AC/DC control input, integrated surge protection, and expandable block construction. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Motor power at 400 V | 4 kW |
|---|---|
| AC-1 current | 25 A |
| Rated voltage | 690 V IEC or 600 UL |
| Poles and contact configuration | 3 pole with 1 built-in auxiliary contact |
| Control supply voltage range | 250-500 V 50/60 Hz and DC |
| Standards | IEC and UL |
| Dimensions | 86 mm height; 45 mm width; 77 mm depth |
| Weight | 0.31 kg |
| EAN | 3471523110045 |
| Country of origin | France |
| Customs tariff number | 85365080 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
