Description

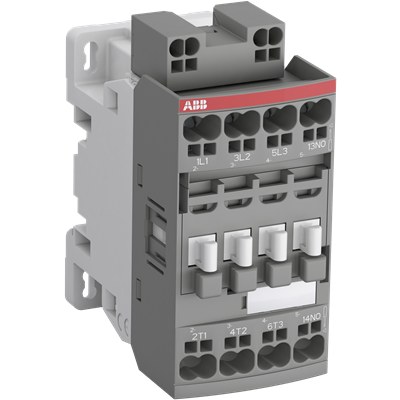

AF09-30-10K-11 24-60V50/60HZ 20-60VDC Contactor. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | 9 A at 380/400 V at 60 °C; also 9 A at 415/440 V, 9.5 A at 500 V, 7 A at 690 V |
|---|---|
| Motor power at 400 V | 4 kW |
| AC-1 current | 25 A at 690 V at 40/60 °C; 22 A at 70 °C |
| Rated voltage | 690 V IEC main/auxiliary circuit; 600 V UL context |
| Poles and contact configuration | 3P; 3 main NO, 0 main NC; 1 auxiliary NO, 0 auxiliary NC |
| Control supply voltage range | 24–60 V, 50/60 Hz; 20–60 V DC |
| Product type | Contactor |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Dimensions | 45 mm x 77 mm x 92.3 mm |
| Weight | 0.285 kg |
| EAN | 3471523154018 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 92 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
