Description

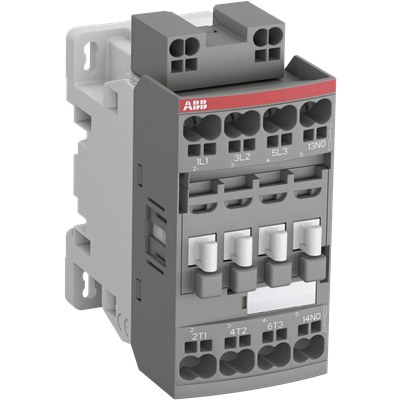

Three-pole contactor with one built-in auxiliary NC contact and push-in spring terminals. Intended for IEC and UL motor/power circuit use, offers a wide control supply range, includes built-in surge protection, and has a block-type design that can be extended with auxiliary contact blocks and accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | (415 V) 60 °C 9 A; (440 V) 60 °C 9 A; (500 V) 60 °C 9.5 A; (690 V) 60 °C 7 A; (380 / 400 V) 60 °C 9 A; (220 / 230 / 240 V) 60 °C 9 A |
|---|---|
| Motor power at 400 V | 4 kW / 400 V AC (AC-3) |
| AC-1 current | 25 A (AC-1); 25 A UL general use; (690 V) 40 °C 25 A; (690 V) 60 °C 25 A; (690 V) 70 °C 22 A |
| Rated voltage | 690 V IEC or 600 UL; Main Circuit 690 V; Auxiliary Circuit 690 V |
| Poles and contact configuration | 3 pole; main contacts 3 NO / 0 NC; auxiliary contacts 0 NO / 1 NC |
| Control supply voltage range | 48-130 V 50/60 Hz and DC |
| Protection rating | not shown |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Dimensions | width 45 mm; depth/length 77 mm; height 92.3 mm |
| Weight | 0.285 kg |
| EAN | 3471523154124 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 92 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
