Description

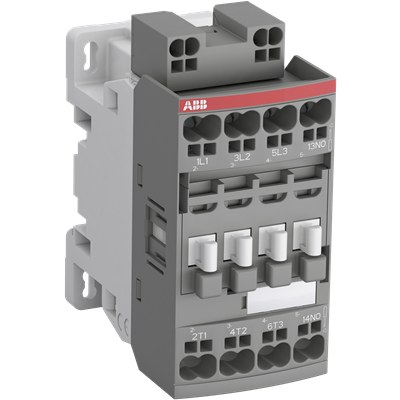

A 3-pole contactor with push-in spring terminals, an integrated auxiliary contact, and built-in surge protection. It is described as supporting motor control with ratings such as “4 kW / 400 V AC (AC-3)” and “5 hp / 480 V UL”, and power-circuit switching up to “25 A (AC-1)” or “25 A UL general use”. It has a wide control range: “48-130 V 50/60 Hz and DC”. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 Rated Operational Current | 9 A at 380/400 V, 415 V, 440 V, and 220/230/240 V (60 °C); 9.5 A at 500 V; 7 A at 690 V |
|---|---|
| Motor Power at 400 V | 4 kW |
| AC-1 Rated Operational Current | 25 A at 690 V (40 °C and 60 °C); 22 A at 70 °C |
| Rated Voltage | 690 V |
| Poles and Contact Configuration | 3P; 3 main NO / 0 main NC; 1 auxiliary NO / 0 auxiliary NC |
| Control Supply Voltage Range | 48-130 V 50/60 Hz and DC |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Dimensions | Width 45 mm; Depth 77 mm; Height 92.3 mm |
| Weight | 0.285 kg |
| Country of origin | France |
| Customs tariff number | 85365080 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 92 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
