Description

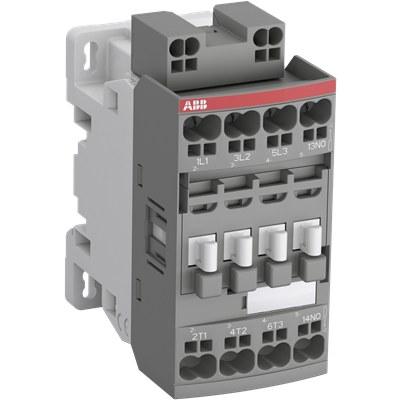

Three-pole contactor with one built-in auxiliary contact and push-in spring terminals for 690 V IEC or 600 V UL, controlling 4 kW motors at 400 V AC and switching power circuits up to 25 A AC-1; it has 100-250 V 50/60 Hz and DC control range, built-in surge protection, block-type design, and accessory expandability. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | 9 A at 415 V, 9 A at 440 V, 9.5 A at 500 V, 7 A at 690 V, 9 A at 380/400 V, 9 A at 220/230/240 V, each at 60 °C |
|---|---|
| Motor power at 400 V | 4 kW |
| AC-1 rated operational current | 25 A at 690 V for 40 °C, 25 A at 690 V for 60 °C, 22 A at 690 V for 70 °C |
| Rated operational voltage | Main circuit 690 V; auxiliary circuit 690 V |
| Poles | 3 poles |
| Main contacts | 3 NO / 0 NC |
| Auxiliary contacts | 1 NO / 0 NC |
| Control supply voltage range | 100-250 V, 50/60 Hz and DC |
| Product type | Contactor |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Dimensions | Width 45 mm; depth 77 mm; height 92.3 mm |
| Weight | 0.285 kg |
| EAN | 3471523154032 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 92 x 77 mm |
