Description

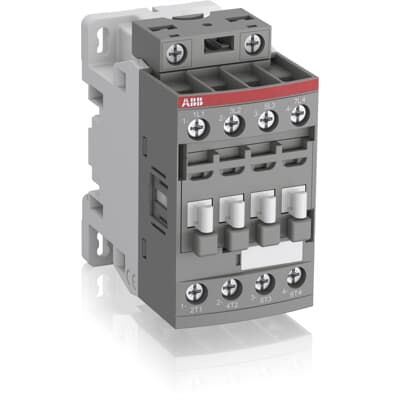

The AF09-40-00-11 is a 4 pole – 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 4 kW. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current (Ie) | 9 A at 380/400 V (60 °C); 9 A at 415 V; 9.5 A at 500 V; 7 A at 690 V |
|---|---|
| Motor power at 400 V (AC-3) | up to 4 kW (AC-3) |
| AC-1 rated current | 25 A (690 V, 40 °C / 60 °C); 22 A (690 V, 70 °C) |
| Rated operational voltage | Main circuit 690 V |
| Poles and contact configuration | 4P; main NO 4 / main NC 0; auxiliary NO 0 / auxiliary NC 0 |
| Control supply voltage range | 24-60 V 50/60 Hz and 20-60 V DC |
| Product dimensions | 45 mm (W) / 77 mm (D) / 86 mm (H) |
| Product net weight | 0.27 kg |
| EAN | 3471523115019 |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
