Description

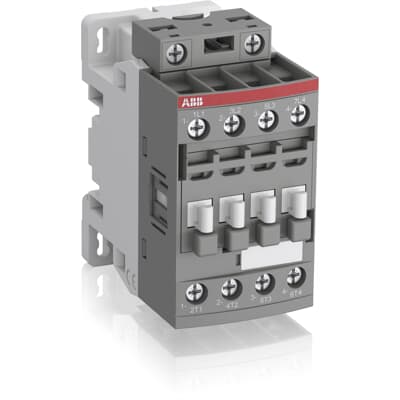

The AF09-40-00-13 is a 4 pole – 690 V IEC or 600 UL contactor with screw terminals. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Motor power at 400 V (AC-3) | up to 4 kW |
|---|---|
| AC-1 rated current | 25 A |
| Rated operational voltage | 690 V IEC or 600 V UL |
| Poles | 4-pole |
| Control supply voltage range | 100-250 V 50/60 Hz and DC |
| Product type | Extended Product Type |
| Standards | IEC; UL |
| Product dimensions | 45 mm (W); 77 mm (D); 86 mm (H) |
| Product net weight | 0.27 kg |
| EAN | 3471523115033 |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
