Description

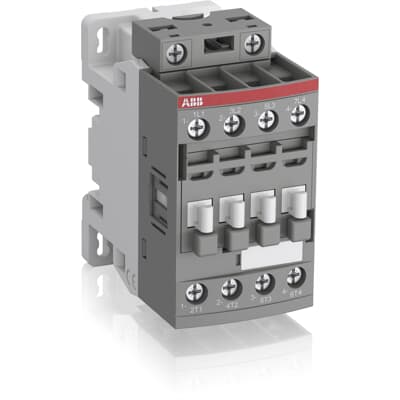

The AF09-40-00-14 is a 4 pole – 690 V IEC or 600 UL contactor with screw terminals, for motors up to 4 kW / 400 V AC (AC-3) and power circuits up to 25 A (AC-1) or 25 A UL general use. It features a wide control voltage range (250-500 V 50/60 Hz and DC), surge protection is built-in, and a block type design extensible with auxiliary contact blocks and accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | 9 A (380/400 V, 60 °C); 7 A (690 V, 60 °C); 9.5 A (500 V, 60 °C) |
|---|---|
| Motor power at 400 V (AC-3) | 4 kW |
| AC-1 rated operational current | 25 A (690 V, 40-60 °C); 22 A (690 V, 70 °C) |
| Conventional free-air thermal current (Ith) | 35 A (open, IEC 60947-4-1, 40 °C) |
| Rated operational voltage (main circuit) | 690 V |
| Rated frequency | 50/60 Hz |
| Poles and contact configuration | 4P; 4 NO main contacts, 0 NC; 0 auxiliary contacts |
| Control supply voltage range | 250-500 V 50/60 Hz and DC |
| Protection rating | not stated in page content |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 |
| Dimensions (W x D x H) | 45 mm x 77 mm x 86 mm |
| Net weight | 0.31 kg |
| EAN | 3471523115040 |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
