Description

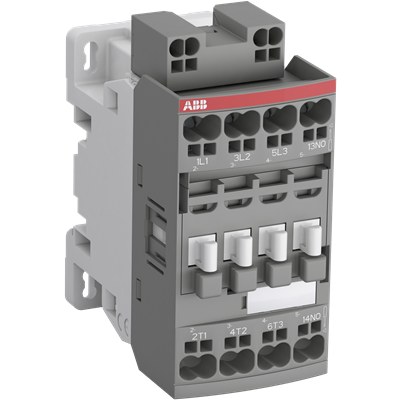

This is a four-pole contactor rated for 690 V IEC or 600 V UL, featuring Push-in Spring terminals. It controls motors up to 4 kW at 400 V under AC-3 duty and switches power circuits up to 25 A (AC-1) or 25 A UL general use. The AF technology provides a wide control voltage window (24–60 V at 50/60 Hz; 20–60 V DC), handles large voltage swings, cuts panel energy draw, and ensures reliable operation on unstable networks. Built-in surge protection keeps the design compact. Block-type construction allows add-on auxiliary contact blocks and a broad accessory range. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current (Ie) | 9 A at 380/400 V, 415 V, and 440 V (60 °C); 9.5 A at 500 V; 7 A at 690 V |
|---|---|
| AC-3 rated operational power (Pe) | 4 kW at 400 V / 415 V / 440 V / 380–400 V; 5.5 kW at 500 V / 690 V; 2.2 kW at 220–240 V |
| AC-1 rated operational current | 25 A at 690 V (40 °C and 60 °C); 22 A at 70 °C |
| Rated operational voltage (main circuit) | 690 V |
| Rated insulation voltage | 690 V (IEC/VDE Gr. C); 600 V (UL/CSA) |
| Poles | 4P |
| Contact configuration | 4 NO main contacts, 0 NC main contacts, 0 auxiliary contacts (both NO and NC) |
| Rated control circuit voltage | 24–60 V (50/60 Hz); 20–60 V (DC) |
| Conventional free-air thermal current (Ith) | 35 A at 40 °C (open contactors, IEC 60947-4-1) |
| Maximum breaking capacity | 250 A at 440 V; 106 A at 690 V (cos φ = 0.45) |
| Max electrical switching frequency | 600 cycles/hr (AC-1) |
| Max mechanical switching frequency | 3600 cycles/hr |
| Power loss per pole | 1.14 W (AC-1); 0.15 W (AC-3) |
| Product type | Contactor |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1 |
| Dimensions (W × D × H) | 45 mm × 77 mm × 92.3 mm |
| Weight | 0.285 kg |
| EAN | 3471523018518 |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 92 x 77 mm |
