Description

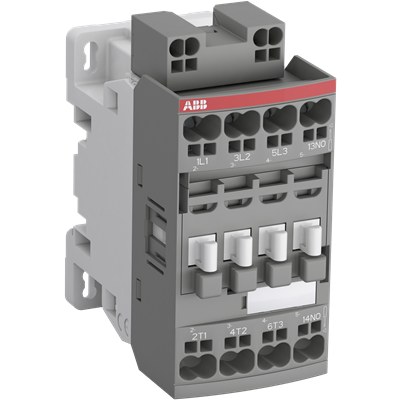

The AF09-40-00K-12 is a 4 pole – 690 V IEC or 600 UL contactor with Push-in Spring terminals, controlling motors up to 4 kW / 400 V AC (AC-3) and switching power circuits up to 25 A (AC-1) or 25 A UL general use. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | 9 A (400/415/440 V); 9.5 A (500 V); 7 A (690 V); all at 60 °C |
|---|---|
| Motor power at 400 V (AC-3) | 4 kW |
| AC-1 rated operational current | 25 A (690 V, 40/60 °C); 22 A (690 V, 70 °C) |
| Rated operational voltage | Main circuit 690 V (IEC) / 600 V (UL) |
| Poles / contact configuration | 4P; 4 main NO contacts; 0 NC; 0 aux NO; 0 aux NC |
| Control supply voltage range | 48–130 V (50/60 Hz and DC) |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-4-1 |
| Dimensions (W × D × H) | 45 mm × 77 mm × 92.3 mm |
| Net weight | 0.285 kg |
| EAN | 3471523018525 |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 92 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
