Description

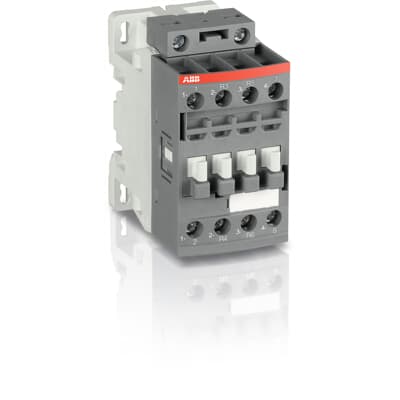

A 4-pole, 690 V IEC / 600 V UL contactor with screw terminals. Controls motors up to 4 kW at 400 V AC-3 and switches power circuits to 25 A (AC-1 or UL general use). Uses AF technology for a wide control-voltage window (250–500 V 50/60 Hz and DC), handles large voltage variations, reduces panel energy consumption, and ensures reliable operation on unstable networks. Built-in surge protection keeps the footprint compact. Block-type design allows easy extension with auxiliary contact blocks and accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current (Ie) | 9 A at 380/400 V, 415 V, 440 V, 220/230/240 V (60 °C); 9.5 A at 500 V; 7 A at 690 V |
|---|---|
| AC-3 rated operational power (Pe) | 4 kW at 400 V / 415 V / 440 V; 5.5 kW at 500 V / 690 V; 2.2 kW at 220/230/240 V |
| AC-1 rated operational current (Ie) | 25 A at 690 V (40 °C); 22 A at 690 V (70 °C); 25 A at 1000 V (60 °C) |
| Rated operational voltage (main circuit) | 690 V |
| Rated insulation voltage (Ui) | 690 V per IEC 60947-4-1; 600 V per UL/CSA |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Number of poles | 4P |
| Main contacts NO / NC | 2 / 2 |
| Auxiliary contacts NO / NC | 0 / 0 |
| Rated control circuit voltage (Uc) | 250–500 V at 50 Hz; 250–500 V at 60 Hz; 250–500 V DC |
| Conventional free-air thermal current (Ith) | 35 A (open contactors, Θ = 40 °C, IEC 60947-4-1) |
| Rated frequency | 50 / 60 Hz (main and control circuit) |
| Max breaking capacity | 250 A at 440 V; 106 A at 690 V (cos φ = 0.45) |
| Short-time withstand current (Icw) | 300 A (1 s), 150 A (10 s), 80 A (30 s), 60 A (1 min), 35 A (15 min) at 40 °C |
| Power loss | 0.8 W/pole (AC-1); 0.1 W/pole (AC-3) |
| Standards | IEC/EN 60947-1, 60947-4-1, 60077-1, 60077-2, 61373; UL 60335-2-40, 60947-1, 60947-4-1; CSA C22.2 60335-2-40, 60947-1, 60947-4-1; EN 50155; TR CU 001/2011 |
| Mounting | DIN rail TH35-15 / TH35-7.5 (IEC 60715); 2 × M4 screws diagonally |
| Dimensions (W × D × H) | 45 × 77 × 86 mm |
| Weight (net) | 0.31 kg |
| EAN | 3471523123144 |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
