Description

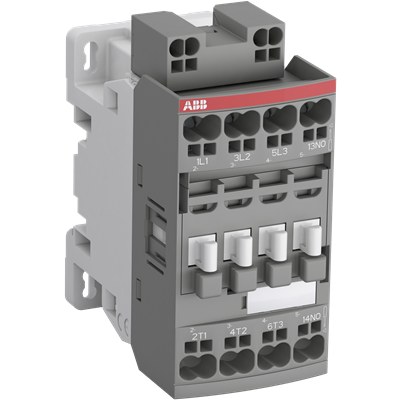

A 3-pole contactor for 690 V IEC or 600 V UL service, with one built-in auxiliary contact and push-in spring terminals. It controls motors up to 5.5 kW at 400 V AC or 7.5 hp at 480 V UL, switches up to 28 A AC-1, accepts a 12 to 20 V DC control supply, includes surge protection, and uses a block-type design expandable with accessory blocks. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | 12 A at 220/230/240 V, 380/400 V, 415 V, 440 V (60 °C); 12.5 A at 500 V (60 °C); 9 A at 690 V (60 °C) |
|---|---|
| Motor power at 400 V | 5.5 kW |
| AC-1 rated operational current | 28 A at 690 V (40 °C and 60 °C); 24 A at 690 V (70 °C) |
| Rated operational voltage | 690 V main circuit; 690 V auxiliary circuit; 690 V IEC / 600 V UL |
| Poles / contact configuration | 3 poles; 3 main NO; 0 main NC; 0 auxiliary NO; 1 auxiliary NC |
| Control supply voltage | 12-20 V DC |
| Product type | Contactor |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Dimensions (W x D x H) | 45 mm x 77 mm x 92.3 mm |
| Weight | 0.315 kg |
| EAN | 3471523155909 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 92 x 77 mm |
