Description

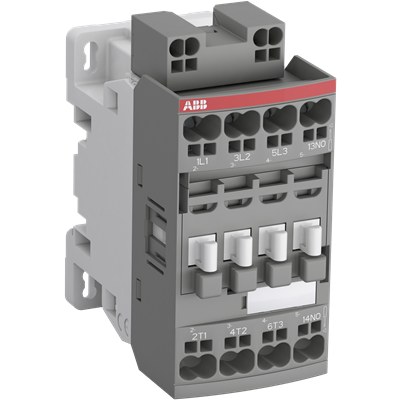

3-pole AC-3 contactor with built-in NC auxiliary contact; push-in terminals; controls up to 5.5 kW at 400 V AC-3; switches up to 28 A AC-1; wide coil range; built-in surge protection; extendable block design. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | 12 A at 380/400 V (60 °C); 9 A at 690 V (60 °C) |
|---|---|
| Motor power at 400 V | 5.5 kW AC-3 |
| AC-1 rated operational current | 28 A at 690 V (40/60 °C) |
| Rated operational voltage | 690 V IEC main/auxiliary; 600 V UL |
| Poles / contact configuration | 3P; main: 3 NO, 0 NC; auxiliary: 0 NO, 1 NC |
| Control supply voltage | 24-60 V 50/60 Hz and 20-60 V DC |
| Product type | Contactor |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Dimensions (W x D x H) | 45 mm x 77 mm x 92.3 mm |
| Weight | 0.315 kg |
| EAN | 3471523155916 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 92 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
