Description

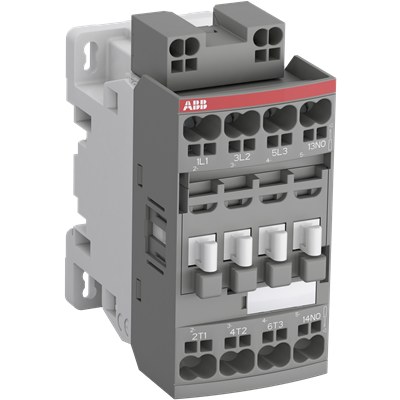

The AF12Z-30-10K-23 is a 3 pole – 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and Push-in spring terminals, controlling motors up to 5.5 kW / 400 V AC (AC-3) or 7-1/2 hp / 480 V UL and switching power circuits up to 28 A (AC-1) or 28 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current (Ie) | 12 A at 380/400/415/440 V; 12.5 A at 500 V; 9 A at 690 V (all at 60 °C) |
|---|---|
| Motor power at 400 V (AC-3) | 5.5 kW |
| AC-1 rated operational current | 28 A at 690 V (40 °C and 60 °C); 24 A at 70 °C |
| Rated operational voltage | 690 V (main and auxiliary circuit) |
| Number of poles | 3P |
| Main contacts NO / NC | 3 / 0 |
| Auxiliary contacts NO / NC | 1 / 0 |
| Control supply voltage range | 100–250 V 50/60 Hz and DC |
| Rated frequency | 50 / 60 Hz (main, auxiliary, control) |
| Conventional free-air thermal current | 35 A (IEC 60947-4-1, open, 40 °C); 16 A (IEC 60947-5-1, 40 °C) |
| Product type | Contactor (3-pole, IEC/UL) |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Product net width | 45 mm |
| Product net depth | 77 mm |
| Product net height | 92.3 mm |
| Product net weight | 0.315 kg |
| EAN | 3471523155831 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
