Description

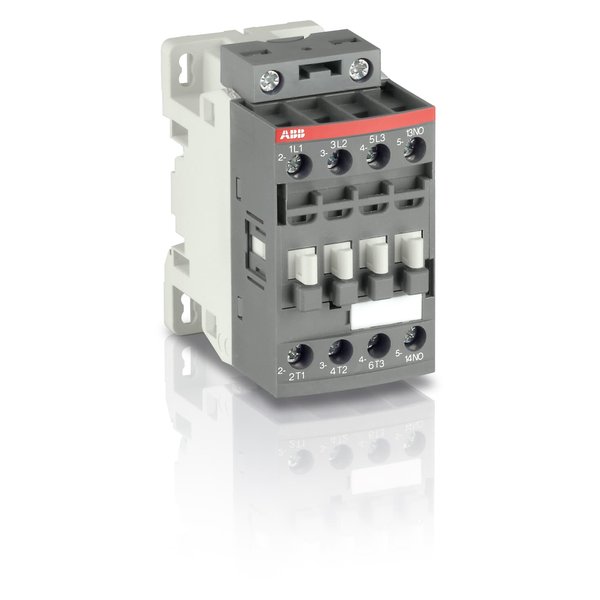

The AF12ZB-30-01-21 is a 3 pole – 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 5.5 kW / 400 V AC (AC-3) or 7-1/2 hp / 480 V UL and switching power circuits up to 28 A (AC-1) or 28 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Number of Main Contacts NO | 3 |
|---|---|
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 3P |
| Rated Operational Voltage | Auxiliary Circuit 690 V / Main Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz / Control Circuit 50 / 60 Hz / Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A / acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 28 A / (690 V) 60 °C 28 A / (690 V) 70 °C 24 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 60 °C 12 A / (440 V) 60 °C 12 A / (500 V) 60 °C 12.5 A / (690 V) 60 °C 9 A / (380 / 400 V) 60 °C 12 A / (220 / 230 / 240 V) 60 °C 12 A |
| Rated Operational Current AC-3e (Ie) | (415 V) 60 °C 12 A / (440 V) 60 °C 12 A / (500 V) 60 °C 12.5 A / (690 V) 60 °C 9 A / (380 / 400 V) 60 °C 12 A / (220 / 230 / 240 V) 60 °C 12 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A / (690 V) 2 A / (24 / 127 V) 6 A / (220 / 240 V) 4 A / (400 / 440 V) 3 A |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 77 mm |
| Product Net Height | 86 mm |
| Product Net Weight | 0.31 kg |
| Customs Tariff Number | 85364900 |
| EAN | 3471523123816 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
