Description

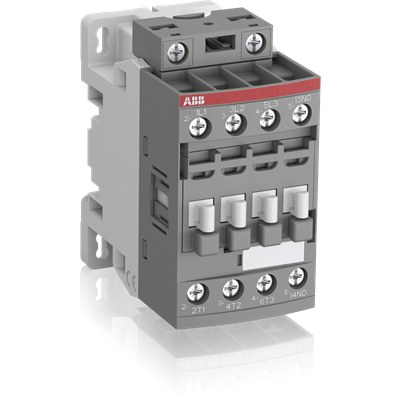

3-pole 690 V IEC / 600 V UL contactor with one built-in auxiliary contact and screw terminals; controls motors up to 5.5 kW at 400 V AC-3 or 7-1/2 hp at 480 V UL, and switches power circuits up to 28 A AC-1 or 28 A UL general use. It has wide control voltage range, built-in surge protection, and an expandable block-type design for auxiliary contact blocks and accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | 12 A at 400 V (not explicitly labeled on page; supported by designation AF12 and 5.5 kW / 400 V AC-3 description) |
|---|---|
| Motor power at 400 V | 5.5 kW AC-3 |
| AC-1 current | 28 A |
| Rated insulation/operational voltage | 690 V IEC / 600 V UL |
| Poles and contact configuration | 3 pole; 1 built-in auxiliary contact; screw terminals |
| Control supply voltage range | 24-60 V 50/60 Hz; 20-60 V DC |
| Standards | IEC; UL |
| Product type | Contactor |
| Dimensions | 45 mm width, 86 mm height, 77 mm depth |
| Weight | 0.27 kg |
| EAN | 3471523110311 |
| Country of origin | France |
| Customs tariff number | 85365080 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
