Description

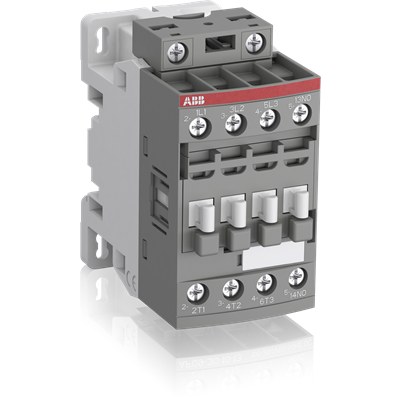

The AF12-30-01-13 is a 3 pole – 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 5.5 kW / 400 V AC (AC-3) or 7-1/2 hp / 480 V UL and switching power circuits up to 28 A (AC-1) or 28 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | 12 A at 400 V / 60 °C; 12.5 A at 500 V; 9 A at 690 V |
|---|---|
| Motor power at 400 V | 5.5 kW at 400 V AC-3 |
| AC-1 rated operational current | 28 A at 690 V / 40-60 °C; 24 A at 70 °C |
| Rated operational voltage | Main Circuit 690 V; Auxiliary Circuit 690 V |
| Poles and contact configuration | 3P; main: 3 NO / 0 NC; auxiliary: 0 NO / 1 NC |
| Control supply voltage | 100-250 V 50/60 Hz and DC |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1 |
| Width | 45 mm |
| Depth | 77 mm |
| Height | 86 mm |
| Weight | 0.27 kg |
| EAN | 3471523110434 |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
