Description

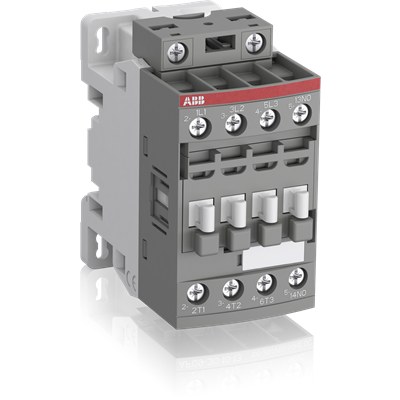

The AF12-30-10-13 is a 3 pole – 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Motor power at 400 V | 5.5 kW / 400 V AC (AC-3) |
|---|---|
| AC-1 current | 28 A (AC-1) |
| Rated voltage | 690 V IEC or 600 UL |
| Poles and contact configuration | 3-pole, 1 built-in auxiliary contact, screw terminals |
| Control supply voltage range | 100-250 V 50/60 Hz and DC |
| Standards | IEC, UL |
| Dimensions | height: 86 mm, width: 45 mm, depth: 77 mm |
| Weight | 0.27 kg |
| EAN | 3471523110335 |
| Customs tariff number | 85365080 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
