Description

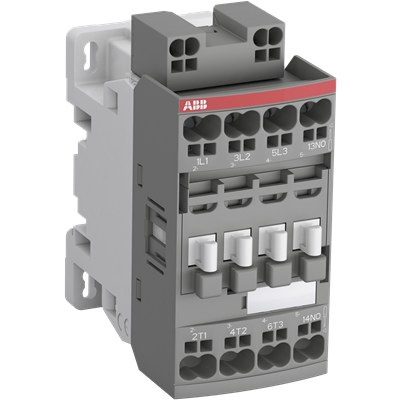

AF12-30-01K-11 24-60V50/60HZ 20-60VDC Contactor. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | 12 A at 400/415/440 V; 12.5 A at 500 V; 9 A at 690 V (60 °C) |
|---|---|
| Motor power at 400 V (AC-3) | 5.5 kW |
| Motor power UL | 7½ hp at 480 V UL |
| AC-1 rated operational current | 28 A at 690 V (40/60 °C); 24 A at 690 V (70 °C) |
| Rated operational voltage (main) | 690 V |
| Rated operational voltage (auxiliary) | 690 V |
| Rated frequency | 50/60 Hz |
| Poles | 3P |
| Main contacts NO/NC | 3 / 0 |
| Auxiliary contacts NO/NC | 0 / 1 (built-in) |
| Control supply voltage | 24–60 V AC 50/60 Hz; 20–60 V DC |
| Conventional free-air thermal current (Ith) | 35 A (IEC 60947-4-1); 16 A (IEC 60947-5-1) |
| Product type | Contactor |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Terminal type | Push-in spring terminals |
| Width | 45 mm |
| Depth | 77 mm |
| Height | 92.3 mm |
| Weight | 0.285 kg |
| EAN | 3471523154414 |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
