Description

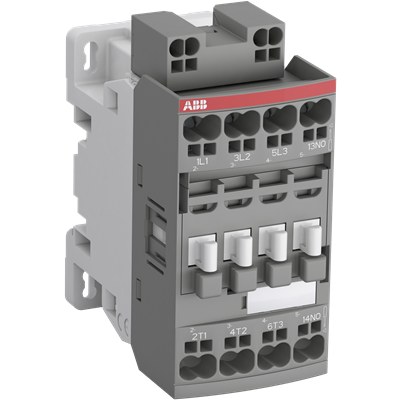

A 3-pole contactor rated 690 V IEC / 600 V UL with one built-in NC auxiliary contact, push-in spring terminals, controlling motors up to 5.5 kW at 400 V AC-3 or 7½ hp / 480 V UL, switching power circuits to 28 A (AC-1). AF technology provides a wide control-voltage window, built-in surge protection, block-type design, and extensibility via add-on auxiliary blocks. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | 12 A @ 400/415/440 V; 12.5 A @ 500 V; 9 A @ 690 V (all at 60 °C) |
|---|---|
| Motor power at 400 V | 5.5 kW (AC-3) |
| AC-1 rated operational current | 28 A @ 690 V (40 °C / 60 °C); 24 A @ 70 °C |
| Rated operational voltage main | 690 V IEC / 600 V UL |
| Poles and contact configuration | 3P; 3 main NO, 0 main NC; 0 aux NO, 1 aux NC (built-in) |
| Control supply voltage range | 250-500 V 50/60 Hz and DC |
| Protection rating | not stated on page |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Dimensions W x D x H | 45 x 77 x 92.3 mm |
| Weight | 0.325 kg |
| EAN | 3471523154445 |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 92 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
