Description

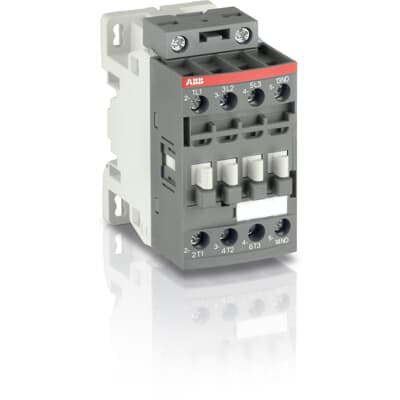

The AF12B-30-01-14 is a 3 pole – 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 5.5 kW / 400 V AC (AC-3) or 7-1/2 hp / 480 V UL and switching power circuits up to 28 A (AC-1) or 28 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Rated operational current Ie AC-3 (60 °C) | 12 A (380/400 V); 12 A (415/440 V); 12 A (220/230/240 V); 12.5 A (500 V); 9 A (690 V) |
|---|---|
| Rated operational power Pe | 5.5 kW (400 V AC-3); 7-1/2 hp (480 V UL) |
| Rated operational current Ie AC-1 (690 V) | 28 A (40 °C); 28 A (60 °C); 24 A (70 °C) |
| Conventional free-air thermal current Ith | 35 A (IEC 60947-4-1); 16 A (IEC 60947-5-1) |
| Number of poles | 3P |
| Number of main contacts NO | 3 |
| Number of main contacts NC | 0 |
| Number of auxiliary contacts NC | 1 (built-in) |
| Rated operational voltage | Main circuit 690 V; Auxiliary circuit 690 V |
| Control voltage range | 250-500 V 50/60 Hz and DC |
| Rated frequency | 50/60 Hz |
| Dimensions (W x H x D) | 45 x 86 x 77 mm |
| Weight | 0.31 kg |
| EAN | 3471523122147 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
