Description

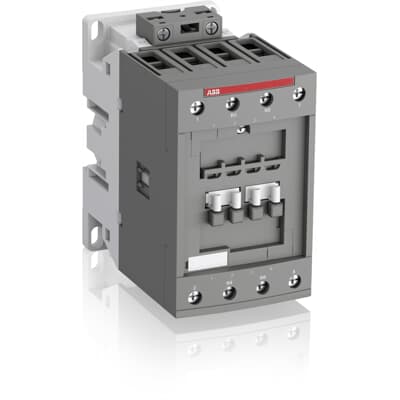

The AF40B-22-00-14 is a 4 pole – 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 18.5 kW / 400 V AC (AC-3) and switching power circuits up to 70 A (AC-1), the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), surge protection is built-in, offering a compact solution, AF contactors have a block type design. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Rated Operational Current AC-3 (Ie) | (220 / 230 / 240 V) 60 °C 40 A; (380 / 400 V) 60 °C 40 A; (415 V) 60 °C 40 A; (440 V) 60 °C 40 A; (500 V) 60 °C 35 A; (690 V) 60 °C 25 A |
|---|---|
| Rated Operational Power AC-3 (Pe) | (220 / 230 / 240 V) 11 kW; (380 / 400 V) 18.5 kW; (415 V) 22 kW; (440 V) 22 kW; (500 V) 22 kW; (690 V) 22 kW |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 70 A; 60 °C 60 A; 70 °C 50 A |
| Rated Insulation Voltage (Ui) | 690 V acc. to IEC 60947-4-1; 600 V acc. to UL/CSA |
| Number of Poles | 4P |
| Pole / contact configuration | 4P (2 NO + 2 NC); auxiliary 0 NO + 0 NC |
| Rated Control Circuit Voltage (Uc) | 50 Hz 250 … 500 V; 60 Hz 250 … 500 V; DC Operation 250 … 500 V |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 105 A |
| Dimensions (W×H×D) | 70 mm × 125.5 mm × 113 mm |
| Weight | 1.16 kg |
| EAN | 3471523024953 |
| Customs Tariff Number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 70 x 126 x 113 mm |
