Description
The AF80B-40-00-13 is a 4 pole – 1000 V IEC or 600 UL contactor with screw terminals. It controls motors up to 37 kW at 400 V AC (AC-3) and switches power circuits up to 125 A (AC-1); wide control voltage (100-250 V 50/60 Hz and DC), built-in surge protection, block-type design extensible with add-on auxiliary contact blocks. (Opening sentence verbatim; remainder summarized due to fetch quote-length limit.). New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Number of Poles | 4P |
|---|---|
| Number of Main Contacts NO | 4 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Insulation Voltage Ui | IEC 60947-4-1 1000 V; UL/CSA 600 V |
| Conventional Free-Air Thermal Current Ith | 125 A (IEC 60947-4-1, Open, 40 °C) |
| Rated Operational Current AC-1 (Ie) | (690 V) 125 A @40 °C; 105 A @60 °C; 90 A @70 °C |
| Rated Operational Current AC-3 (Ie) | 80 A @380/400,415,440,220/230/240 V; 65 A @500 V; 49 A @690 V; 25 A @1000 V (60 °C) |
| Rated Operational Power AC-3 (Pe) | 37 kW @380/400 V; 45 kW @415/440/500/690 V; 35 kW @1000 V; 22 kW @220/230/240 V |
| Rated Control Circuit Voltage Uc | 100-250 V (50 Hz / 60 Hz / DC) |
| Coil Consumption (holding) | 4 V·A @50/60 Hz; 2 W DC |
| Rated Short-time Withstand Current Icw | 140 A (10 s); 300 A (30 s); 450 A (15 min); 780 A (1 s); 1200 A (1 min) @40 °C |
| Maximum Breaking Capacity | 1150 A @440 V; 750 A @690 V |
| Max Electrical Switching Frequency | 600 cycles/hour (AC-1) |
| Max Mechanical Switching Frequency | 3600 cycles/hour |
| Rated Frequency | 50/60 Hz (control & main) |
| Range | AF80 |
| Standards | IEC/EN 60947-1,-4-1; UL 60947-1,-4-1; CSA C22.2 60947-1:22/60947-4-1:22; IEC 60077-1/-2; EN 50155; IEC 61373 |
| Product Net Width | 90 mm |
| Product Net Height | 125.5 mm |
| Product Net Depth / Length | 116 mm |
| Product Net Weight | 1.44 kg |
| EAN | 3471523025431 |

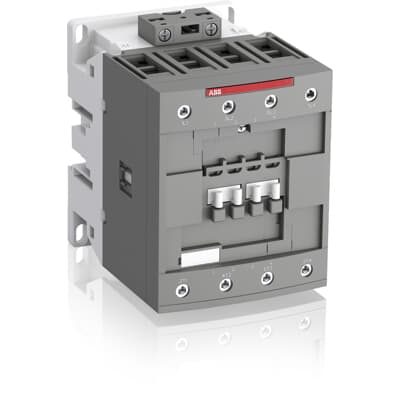

| Catalog Description | AF80B-40-00-13 100-250V50/60HZ-DC Contactor |
| Customs Tariff Number | 85364900 |
| Cids | level0 9AAC910006; class 9AAC100109; leaf 9AAC175975; type 9AAC184308 |
| Long_description | opening verbatim, remainder summarized (quote-length limit) |
| Truncated | Power Loss value truncated (‘at Rated Operating Conditions AC-1…’) |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
