Description

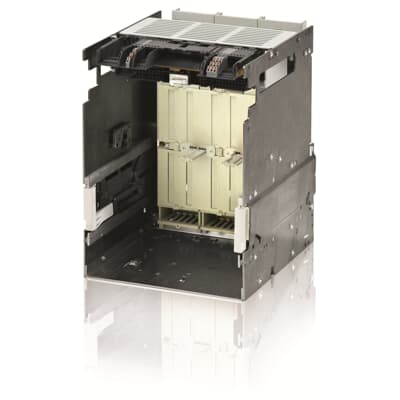

Fixed part withdrawable for c.breaker sace emax2 e2.2 2500 three-pole with rear horizontal terminals. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Current Type | AC |
|---|---|
| Number of Poles | 3P |
| Rated Current (In) | 2500 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC ; 800 V AC ; 900 V AC ; 1000 V AC |
| Rated Uninterrupted Current (Iu) | 2500 A |
| Rated Voltage (Ur) | 1000 V |
| Product Main Type | SACE Emax 2 |
| Product Name | Fixed Part |
| Product Type | Fixed Part |
| Version | WFP |
| Standards | IEC |
| Sub-type | E2.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Product Net Width | 317 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 36 kg |
| EAN | 8015644778446 |
| Catalog Description | E2.2 W FP Iu=2500 3p HR HR |
| Customs Tariff Number | 85389099 |
| Connecting Capacity | 1800 mm² |
| Recommended Screw Driver | M12 |
| Tightening Torque | 70 N·m |
| Object Classification Code | Q |
| Unspsc | 39121616 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
