Description

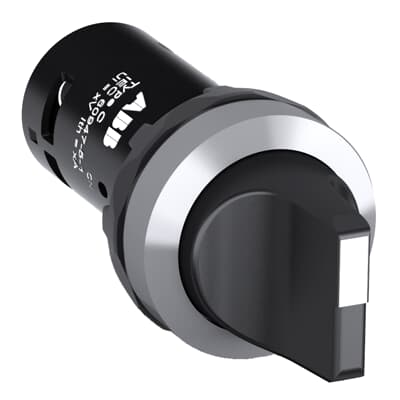

Compact – Selector Switch – 2-position – Maintained – Short handle – Black – Non-illuminated – Chrome Metal – 1NO+1NC – 1 NO – 1 NC – 24 … 300, 300 V. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Contact Configuration | 1NO+1NC (1 NO, 1 NC) |
|---|---|
| Function | Maintained |
| Sub-Function | 2-position |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Voltage | 24 … 300 V; maximum 300 V |
| Rated Frequency | 50 / 60 Hz |
| Rated Operational Current AC-15 (Ie) | (240 V) 2 A; (220 / 240 V) 2 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A; (125 V) 0.2 A |
| Power Loss | Maximum 5 W |
| Pollution Degree | 3 |
| Degree of Protection | Front IP66, IP67, IP69K; Terminals IP20 |
| Wire Stripping Length | 6 mm |
| Product Type | Selector Switch |
| Colour | Black |
| Bezel Material | Metal |
| Mechanical Durability | 0.5 million |
| Ambient Air Temperature | Operation -25 … +70 °C; Storage -40 … +85 °C |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Terminal Type | Screw Terminals |
| Product Net Width | 30 mm |
| Product Net Height | 30 mm |
| Product Net Depth / Length | 72 mm |
| Product Net Weight | 0.032 kg |
| Maintained Positions | B, C |
| Illumination | Non-illuminated |
| Tightening Torque | 0.8 N·m |
| Connecting Capacity | Flexible/solid 0.5…1.5 mm² in 1 or 2 conductor configurations |
| Connecting Capacity UL/CSA | 1x/2x 22…14 AWG |
| EAN | 7320500554852 |
| Customs Tariff Number | 8536501999 |
| Country of origin | China |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Bag x 10 |
| Product status (supplier data) | Active |
