Description

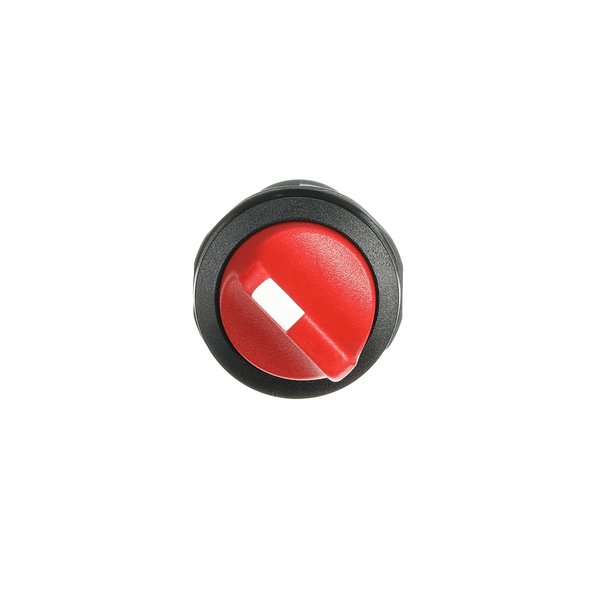

The C2SS2-10R-11 Selector Switch is: Compact – Selector Switch – 2-position – Maintained – Short handle – Red – Non-illuminated – Black Plastic – 1NO+1NC – 1 NO – 1 NC – 300 V This Selector Switch is part of ABB’s compact range, the most efficient all-in-one solution available, reducing installation time and cost. The compact range has a high level of dust and water resistance. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Maintained |
|---|---|
| Sub-Function | 2-position |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Pollution Degree | 3 |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | Maximum 300 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A | (125 V) 0.2 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 2 A | (220 / 240 V) 2 A |
| Power Loss | Maximum 5 W |
| Wire Stripping Length | 6 mm |
| Degree of Protection | Front IP66 | Front IP67 | Front IP69K | Terminals IP20 |
| Ambient Air Temperature | Operation -25 … +70 °C | Storage -40 … +85 °C |
| Colour | Red |
| Bezel Material | Plastic |
| Enclosure Type NEMA | Type1 / Type12 / Type13 / Type3R / Type4 / Type4X |
| Mechanical Durability | 0.5 million |
| Terminal Type | Screw Terminals |
| Product Net Width | 30 mm |
| Product Net Height | 30 mm |
| Product Net Depth / Length | 72 mm |
| Product Net Weight | 0.024 kg |
| Customs Tariff Number | 8536501999 |
| EAN | 7320500554937 |
| Category | CSS Compact Selector Switches |
| Illumination | Non-illuminated |
| Maintained Positions | A, C |
| Tightening Torque | 0.8 N·m |
| Connecting Capacity UL/CSA | 1x 22…14 AWG | 2x 22…14 AWG |
| Country of origin | China |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Bag x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
