Description

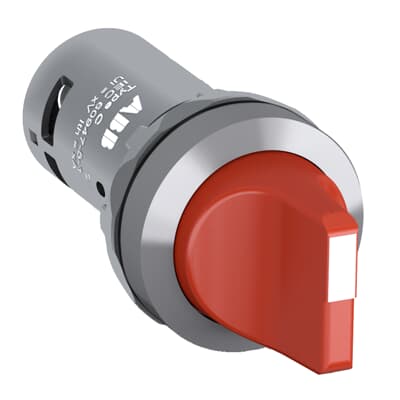

C2SS2-30R-11 Selector Switch. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Maintained |
|---|---|
| Sub-function | 2-position |
| Contact configuration | 1 NO + 1 NC |
| Number of Auxiliary Contacts | 1 NO, 1 NC |
| Rated Insulation Voltage | 300 V |
| Rated Operational Voltage | Maximum 300 V |
| Rated Impulse Withstand Voltage | 6 kV |
| Rated Frequency | 50 / 60 Hz |
| Rated Operational Current AC-15 | 2 A at 240 V; 2 A at 220 / 240 V |
| Rated Operational Current DC-13 | 0.3 A at 24 V; 0.2 A at 125 V |
| Power Loss | Maximum 5 W |
| Wire Stripping Length | 6 mm |
| Pollution Degree | 3 |
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
| Bezel Material | Metal |
| Colour | Red |
| Mechanical Durability | 0.5 million |
| Terminal Type | Screw terminals |
| Enclosure Type NEMA | Type 1, Type 12, Type 13, Type 3R, Type 4, Type 4X |
| Ambient Air Temperature – Operation | -25 to +70 °C |
| Ambient Air Temperature – Storage | -40 to +85 °C |
| Product Net Width | 30 mm |
| Product Net Height | 30 mm |
| Product Net Depth / Length | 72 mm |
| Product Net Weight | 0.032 kg |
| EAN | 7320500555033 |
| Customs Tariff Number | 8536501999 |
| Maintained positions | A, C |
| Illumination | Non-illuminated |
| Tightening Torque | 0.8 N·m |
| Connecting Capacity | Flexible or solid 1x or 2x 0.5 to 1.5 mm², with ferrule options |
| Connecting Capacity UL/CSA | 1x and 2x 22 to 14 AWG |
| Country of origin | China |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Bag x 10 |
| Product status (supplier data) | Active |
