Description

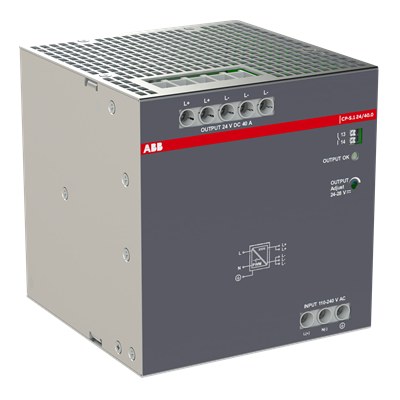

The CP-S.1 24/40.0 is a power supply from the new generation CP-S.1 range. The primary switch mode power supply offers a wide range input of 99-264 V AC and 99-277 V DC, rated input voltage is 110-240 V AC, respectively 110-250 V DC. The rated output power is 960 W, rated output current is 40 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 150 % for 5 s and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Output voltage | 24 V DC, adjustable 24 to 28 V DC |
|---|---|
| Output current | 40 A (maximum output current 60 A) |
| Output power | 960 W |
| Input voltage range | Rated 110-240 V AC / 110-250 V DC; wide range 99-264 V AC / 99-277 V DC |
| Frequency | 50/60 Hz / DC; limits 45-65 Hz |
| Typical input current | (115 V AC) 9.5 A; (230 V AC) 5 A |
| Function | Switch mode power supply |
| Standards | power factor correction acc. to EN 61000-3-2 |
| Dimensions W/D/H | 125 mm / 127 mm / 129.4 mm |
| Net weight | 2.49 kg |
| Width | 125 mm |
| Depth | 127 mm |
| Height | 129.4 mm |
| Number of phases | 1-phase |
| Hold-up time | (230 V AC) min. 20 ms |
| EAN | 4013614561139 |
| Customs tariff number | 85044095 |
| Country of origin | China |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
