Description

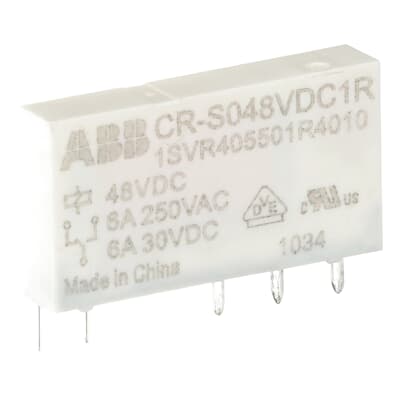

The CR-S048VDC1R is a slim pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB’s sockets. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. This relay operates with a 48 V DC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 6 A. This slim pluggable interface relays may be used for electrical isolation, amplification and signal matching. The CR-S relays are 6.2 mm wide and therefore allow for the switching of high currents on a small footprint. Moreover, CR-S relays are UL 94-V0 certified, improving safety by providing high levels flame retardation. Screw and spring sockets, jumper bars and markers are available as accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Pluggable slim interface relay CR-S |
|---|---|
| Sub-Function | Relay with standard contacts |
| Rated Control Supply Voltage (Us) | 48 V DC |
| Output | 1 C/O (SPDT) Contact |
| Output Signal | 250 V / 6 A |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A |
| Degree of Protection | IP20 |
| Overvoltage Category | III |
| Pollution Degree | 2 |
| Standards | CAN/CSA C22.2 No.14; IEC/EN 61810-1; UL 508 |
| Ambient Air Temperature – Operation | -40 … +85 °C |
| Ambient Air Temperature – Storage | 0 … +40 °C |
| Product Net Width | 5 mm |
| Product Net Height | 15 mm |
| Product Net Depth / Length | 28 mm |
| Product Net Weight | 0.005 kg |
| EAN | 4013614499142 |
| Customs Tariff Number | 85364900 |
| Country of origin | China |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
