Description

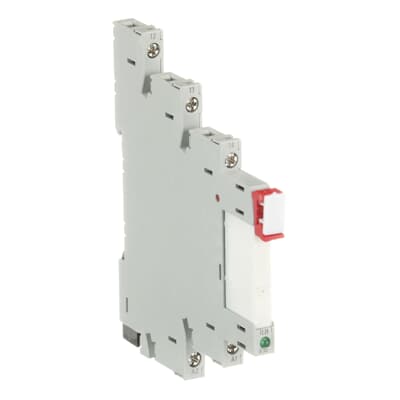

CR-S024VADC1CRGS Interface relay cpl. 1c/o, A1-A2=24VAC/DC, Output=6A/250VAC gold-plated contacts, screw terminals. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Fully assembled interface relay CR-S |
|---|---|
| Sub-Function | Relay with gold-plated contacts |
| Rated Control Supply Voltage | 24 V AC/DC |
| Output | 1 C/O (SPDT) Contact |
| Output Signal | 250 V / 6 A |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A |
| Degree of Protection | Terminals IP20 |
| Wire Stripping Length | 7 mm |
| Terminal Type | Screw Terminals |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61810-1; IEC/EN 61984; UL 508 |
| Ambient Air Temperature | Operation -40 … +70 °C; Storage 0 … +40 °C |
| Product Net Width | 6.3 mm |
| Product Net Height | 76.4 mm |
| Product Net Depth / Length | 88.5 mm |
| Product Net Weight | 0.03 kg |
| Depth | 88.5 mm |
| Height | 76.4 mm |
| Width | 6.3 mm |
| Weight | 0.03 kg |
| EAN | 4013614499296 |
| Customs Tariff Number | 85364900 |
| Connecting Capacity | Flexible 2.5 mm² / Rigid 2.5 mm² |
| Connecting Capacity UL/CSA | Flexible 14 AWG / Rigid 14 AWG |
| Tightening Torque | 0.5 N·m |
| Tightening Torque UL/CSA | 4.42 in·lb |
| Category | Interface Relays and Optocouplers |
| Logo | http://d3o3d9viu00ouz.cloudfront.net/external/@oneabb/LibraryImages/ABBLogo.png |
| Description | CR-S024VADC1CRGS Interface relay cpl. 1c/o, A1-A2=24VAC/DC, Output=6A/250VAC gold-plated contacts, screw terminals |
| Image | https://cdn.productimages.abb.com/9PAA00000238558_master.jpg |
| Url | http://new.abb.com/products/1SVR405541R3120/cr-s024vadc1crgs |
| Country of origin | China |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
