Description

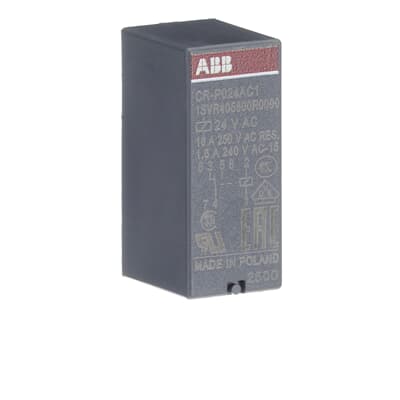

The CR-P024AC1 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB’s sockets. This relay operates with a 024 V AC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 16 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Pluggable pcb interface relay CR-P |
|---|---|
| Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 24 V AC |
| Rated Operational Voltage | 400 V AC |
| Output | 1 C/O (SPDT) Contact |
| Output Signal | 250 V / 16 A |
| Rated Operational Current AC-12 (Ie) | (230 V) 16 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A; (230 V) 1.5 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 16 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.5 A; (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 400 V |
| Degree of Protection | IP67 |
| Max Operating Voltage UL/CSA | 300 V AC |
| Contact Rating UL/CSA | B300 |
| Terminal Type | Soldering Pins |
| Mounting Position | 1 |
| Standards | IEC/EN 61810-1 |
| Ambient Air Temperature | Operation -40 … +70 °C; Storage -40 … +85 °C |
| Max Operating Altitude | Without Derating 2000 m |
| Product Net Width | 12.7 mm |
| Product Net Height | 15.7 mm |
| Product Net Depth / Length | 29 mm |
| Product Net Weight | 0.014 kg |
| EAN | 4013614498138 |
| Customs Tariff Number | 85364900 |
| Pilot Duty UL/CSA | B300 |
| Flammability UL94 | V-0 |
| Country of origin | Poland |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
