Description

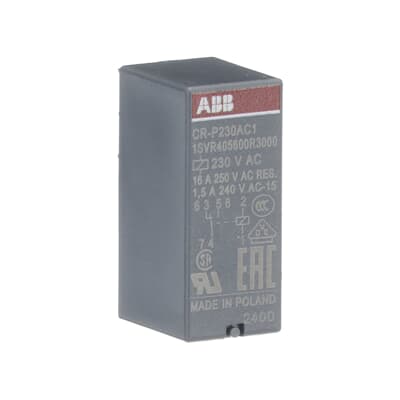

CR-P230AC1 Pluggable interface relay 1c/o, A1-A2=230VAC, 250V/16A. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Pluggable pcb interface relay CR-P |
|---|---|
| Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 230 V AC |
| Rated Operational Voltage | 400 V AC |
| Output | 1 C/O (SPDT) Contact |
| Output Signal | 250 V / 16 A |
| Rated Operational Current AC-12 | (230 V) 16 A |
| Rated Operational Current AC-15 | (120 V) 3 A; (230 V) 1.5 A |
| Rated Operational Current DC-12 | (24 V) 16 A |
| Rated Operational Current DC-13 | (24 V) 2.5 A; (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 400 V |
| Degree of Protection | IP67 |
| Max Operating Voltage UL/CSA | 300 V AC |
| Terminal Type | Soldering Pins |
| Mounting Position | 1 |
| Standards | IEC/EN 61810-1 |
| Ambient Air Temperature | Op: -40…+70 °C; Stg: -40…+85 °C |
| Max Operating Altitude | Without Derating 2000 m |
| Product Net Width | 12.7 mm |
| Product Net Height | 15.7 mm |
| Product Net Depth / Length | 29 mm |
| Product Net Weight | 0.014 kg |
| EAN | 4013614498169 |
| Customs tariff number | 85364900 |
| Pilot Duty UL/CSA | B300 |
| Flammability UL94 | V-0 |
| Country of origin | Poland |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
