Description

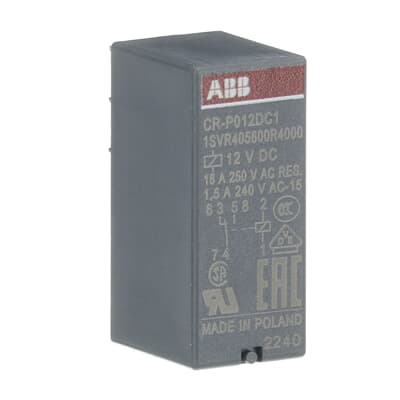

The CR-P012DC1 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB’s sockets. This relay operates with a 12 V DC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 16 A […] with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter […] Standard sockets, logical sockets, pluggable function modules, holder and marker are available. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Pluggable pcb interface relay CR-P |
|---|---|
| Sub-Function | Relay w/o built in LED |
| Rated control supply voltage | 12 V DC |
| Rated operational voltage | 400 V AC |
| Rated frequency | 50 / 60 Hz |
| Output | 1 C/O (SPDT) Contact |
| Output signal (rated) | 250 V / 16 A |
| Rated operational current AC-12 (Ie) | (230 V) 16 A |
| Rated operational current AC-15 (Ie) | (120 V) 3 A; (230 V) 1.5 A |
| Rated operational current DC-12 (Ie) | (24 V) 16 A |
| Rated operational current DC-13 (Ie) | (24 V) 2.5 A; (250 V) 0.1 A |
| Rated insulation voltage | 400 V |
| Degree of protection | IP67 |
| Max operating voltage UL/CSA | 300 V AC |
| Pilot duty (contact rating) UL/CSA | B300 |
| Terminal type | Soldering Pins |
| Mounting position | 1 |
| Standards | IEC/EN 61810-1 |
| Ambient air temperature | Operation -40 … +85 °C; Storage -40 … +85 °C |
| Max operating altitude | Without Derating 2000 m |
| Product net width | 12.7 mm |
| Product net height | 15.7 mm |
| Product net depth / length | 29 mm |
| Product net weight | 0.014 kg |
| EAN | 4013614498176 |
| Customs tariff number | 85364900 |
| Flammability per UL94 | V-0 |
| Spare Parts | No spare part types to display |
| Country of origin | Poland |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
