Description

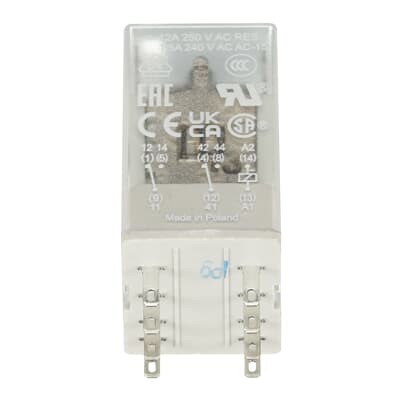

Miniature pluggable interface relay for an ABB CR-M socket; relay and socket can snap onto DIN rail. Uses 24 V DC control, 2 c/o (SPDT) output rated 250 V / 12 A, with test button and LED. Sockets, logic sockets, function modules, holders, and markers are available as accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Rated Control Supply Voltage | 24 V DC |
|---|---|
| Output / Poles | 2 c/o (SPDT) |
| Contact Rating | 250 V / 12 A |
| Mounting | Snap-on DIN rail |
| Width | 21.2 mm |
| Height | 35.6 mm |
| Depth | 27.5 mm |
| Weight | 0.033 kg |
| EAN | 4013614497223 |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
