Description

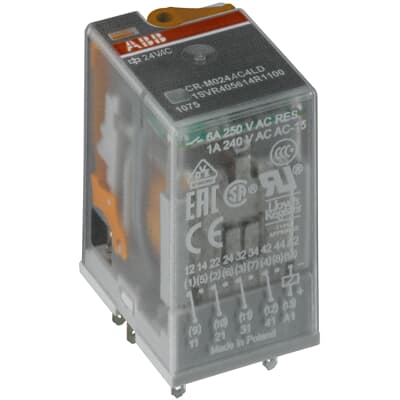

The CR-M048AC2L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail. This relay operates with a 48 V AC rated control supply voltage and has a 2 c/o (SPDT) output with contacts rated at 250 V / 12 A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it’s output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Rated control supply voltage Us (A1-A2) | 48 V AC |
|---|---|
| Number and type of contacts | 2 C/O (SPDT) |
| Output signal rating | 250 V / 12 A |
| Rated operational voltage | 250 V AC |
| Rated frequency | 50 / 60 Hz |
| Rated insulation voltage Ui | 250 V |
| Rated operational current AC-12 | (230 V) 12 A |
| Rated operational current AC-15 | (120 V) 3 A; (230 V) 1.5 A |
| Rated operational current DC-12 | (24 V) 12 A |
| Rated operational current DC-13 | (24 V) 2.5 A; (250 V) 0.1 A |
| Sub function | Relay with built in LED |
| Degree of protection | IP40 |
| Contacts | 2CO |
| Connection / terminal type | Flat-Pin Connections |
| Standards | CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61810-1; UL 508; CAN/CSA C22.2 No.14;IEC/EN 63000;IEC/EN 61810-1;UL 508 |
| Dimensions W x D x H | 21.2 mm x 27.5 mm x 35.6 mm |
| Net weight | 0.033 kg |
| EAN | 4013614497339 |
| Customs tariff number | 85364900 |
| Classification | 9AAC910006;9AAC100116;9AAC132577 |
| Us | 48VAC |
| Ui | 250V |
| Freq | 50/60Hz |
| Tariff | 85364900 |
| Origin | India |
| Manufacturer standard delivery time | 60 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 21 x 36 x 28 mm |
