Description

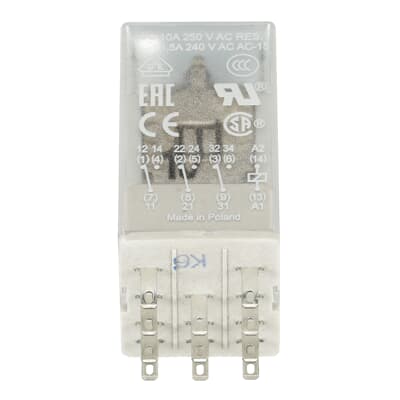

CR-M125DC3 Pluggable interface relay 3c/o, A1-A2=125VDC, 250V/10A. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Rated control supply voltage | 125 V DC |
|---|---|
| Output | 3 c/o (SPDT) |
| Output signal | 250 V / 10 A |
| Degree of protection | not present in provided content |
| Mounting | snap-on mounted onto a DIN Rail |
| Standards | not present in provided content |
| Product net width | 21.2 mm |
| Product net height | 35.6 mm |
| Product net depth / length | 27.5 mm |
| Product net weight | 0.033 kg |
| EAN | 4013614497650 |
| Led | integrated LED (per long description) |
| Truncated | 3 c/o output confirmed on this MRN’s page (distinct from the 2 c/o DC2/DC2L siblings); IP degree of protection and standards rows not shown in capture. |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
