Description

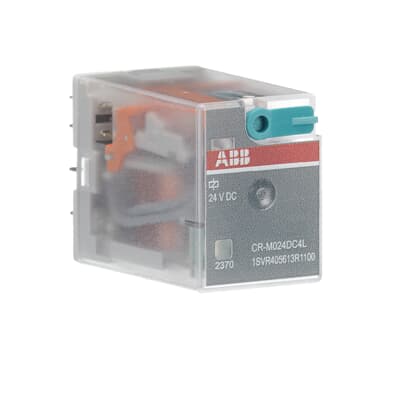

The CR-M024DC4L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Rated contact voltage/current | 250 V / 6 A |
|---|---|
| Control supply voltage / coil voltage | 24 V DC |
| Output/contact arrangement | 4 c/o / SPDT |
| Coil indication | LED |
| Product type | Pluggable interface relay |
| Mounting | ABB CR-M socket, DIN-rail snap-on |
| Height | 35.6 mm |
| Width | 21.2 mm |
| Depth | 27.5 mm |
| Weight | 0.033 kg |
| EAN | 4013614497728 |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
