Description

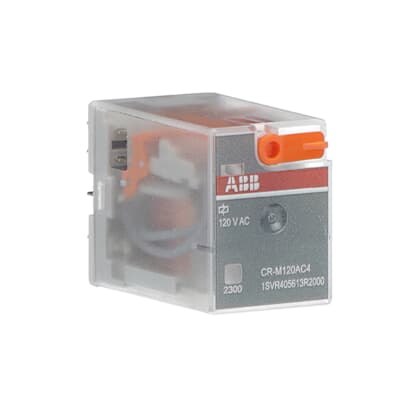

The CR-M120AC4 pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Rated control supply voltage | 120 V AC |
|---|---|
| Rated operational voltage | 250 V AC |
| Rated frequency | 50 / 60 Hz |
| Output | 4 C/O (SPDT) Contacts |
| Output signal | 250 V / 6 A |
| Rated operational current AC-12 (Ie) | (230 V) 6 A |
| Sub-function | Relay w/o built in LED |
| Function | Pluggable miniature interface relay CR-M |
| Terminal type | Flat-Pin Connections |
| Product net width | 21.2 mm |
| Product net height | 35.6 mm |
| Product net depth / length | 27.5 mm |
| Product net weight | 0.033 kg |
| EAN | 4013614497735 |
| Customs tariff number | 85364900 |
| Truncated | Attribute table truncated on both the initial and the completion fetch; AC-15 / DC-12 / DC-13 currents, coil power, IP degree of protection, pollution degree, mounting and standards rows were not shown. |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
