Description

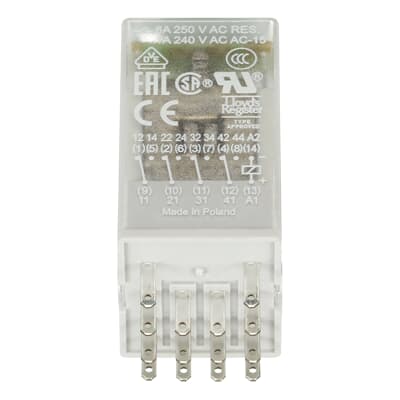

A miniature plug-in relay from the CR-M range, mounted via a compatible socket. It uses a direct-current control input and provides four changeover circuits, each usable at the listed mains voltage and current. A lockable test element allows manual contact forcing, while a status light shows when the coil is powered and an internal diode limits switching spikes. Separate socket, logic, holder and marker accessories can be selected. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Coil control rating | 24 V DC |
|---|---|
| Rated operating voltage | 250 V AC |
| Contact output arrangement | 4 C/O (SPDT) Contacts |
| Contact output rating | 250 V / 6 A |
| AC-12 current | (230 V) 6 A |
| AC-15 current | (120 V) 1.5 A / (230 V) 1 A |
| DC-12 current | (24 V) 6 A |
| DC-13 current | (24 V) 2 A / (250 V) 0.1 A |
| Protection class | IP40 |
| Product type | Pluggable miniature interface relay CR-M |
| Connection style | Flat-Pin Connections |
| Standards | CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61810-1; UL 508 |
| Width | 21.2 mm |
| Height | 35.6 mm |
| Depth | 27.5 mm |
| Weight | 0.033 kg |
| EAN | 4013614497933 |
| Customs tariff number | 85364900 |
| Insulation rating | 250 V |
| Country of origin | Poland |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
