Description

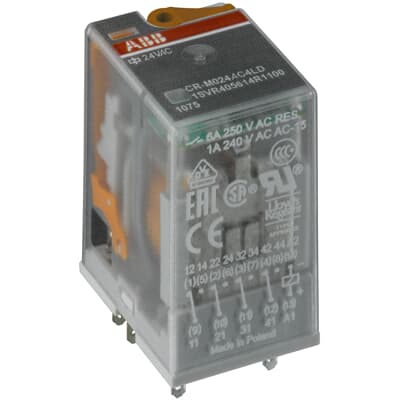

Pluggable miniature interface relay with gold-plated contacts for use in a matching ABB CR-M socket; once combined, the pair can be snap-mounted on DIN rail. It runs on a 24 V AC control supply and offers a 4 C/O (SPDT) output rated 250 V / 6 A, so one input signal can switch several circuits. An integrated test button allows manual actuation by latching the output contacts, aiding testing and commissioning, and an LED shows coil energization. Gold plating aids reliable switching of small currents and loads. Sockets, function modules, holders and markers are listed as accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Rated Control Supply Voltage (Us) | 24 V AC |
|---|---|
| Rated Operational Voltage | 250 V AC |
| Rated Frequency (f) | 50 / 60 Hz |
| Output | 4 C/O (SPDT) Contacts |
| Output Signal | 250 V / 6 A |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 1.5 A; (230 V) 1 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A; (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP40 |
| Maximum Operating Voltage UL/CSA | 300 V AC |
| Terminal Type | Flat-Pin Connections |
| Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61810-1; UL 508 |
| Ambient Air Temperature (Operation) | -40 … +55 °C |
| Ambient Air Temperature (Storage) | -40 … +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Product Net Width | 21.2 mm |
| Product Net Height | 35.6 mm |
| Product Net Depth / Length | 27.5 mm |
| Product Net Weight | 0.033 kg |
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | HB |
| EAN | 4013614497940 |
| Customs Tariff Number | 85364900 |
| Country of origin | Poland |
| Manufacturer standard delivery time | 60 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
